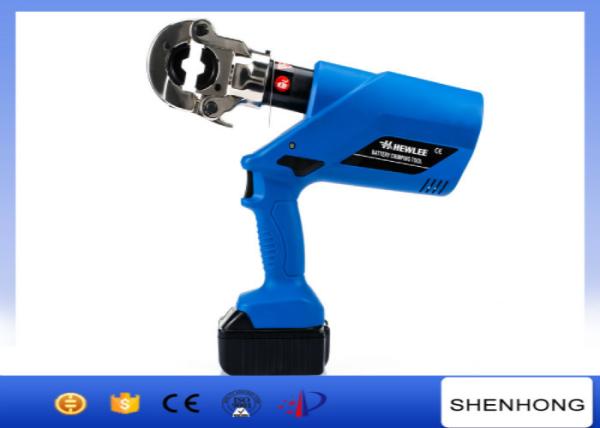

HL-300 Battery Hydraulic Cable Lug Crimping Tool 6T Crimping Force

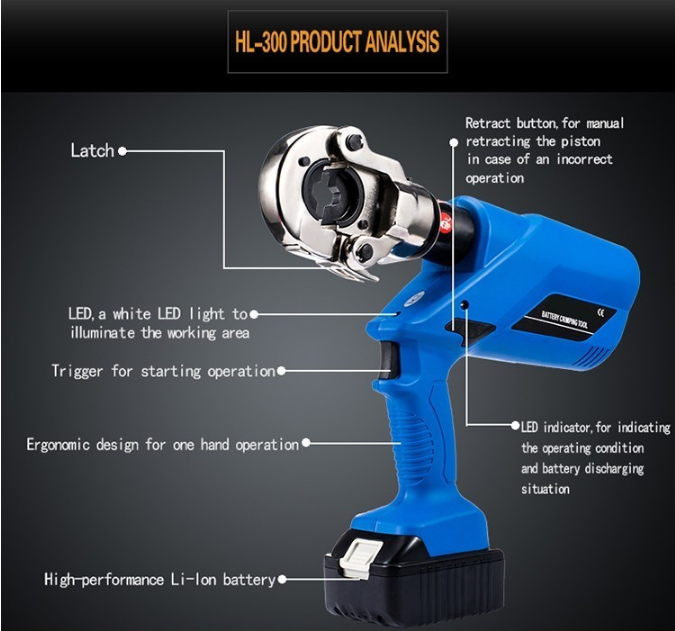

Features:
1. Full-automatic clamping process, return the piston into its starting position when the max pressure reached.
2. Suspend and release device ensure accurate reliability and good sealing.
3. The hydraulic safety valve and electronic pressure sensor double overload protection device, can be in any need to terminate the work, avoid hazardous.
4. Straight-insert rotary lock type clamp head pin, prevent clamp head pin not lock to work.
5. 180 rotary clamp head, perfect used in narrow working space.
6. Large capacity of Li-ion battery and strong motor provide powerful performance and durability.
7. LED and sound alarm function, let your work more secure when malfunction happened.
8. Built-in temperature sensor, prevent the damage from the long work.
9. Automatic retraction stops (ARS) after completed crimping: stops at the correct position to secure further multiple parallel crimps of similar type.
10. High performance 18 V Lithium-Ion Batteries offering 50% higher capacity.
11. Power save function through motor stop feature (Automatic stop) once operation cycle is completed.
12. Two stage hydraulics more powerful.
13. Ergonomic design for one hand operated good.
14. Good design, good balance.
Specification:
| Model | EZ-300 Battery Operated Crimping Tool |
| Crimping force: | 60KN |
| Stroke: | 17mm |
| Crimping per charge: | 320 crimps (150 mm 2 Cu cable) |
| Crimping cycle: | 3s-6s(depend on the size) |
| Battery voltage: | 18v |
| Battery capacity: | 3.0Ah |
| Charging time: | 2-2.5hs |
| Package: | steel case |
| Accessories: | 16,25,35,50,70,95,120,150,185,240,300mm 2 |
| Note: 2 Battery, 1 Charger, 2 set O-ring for oil vat and safety valve, Detailed Manual Instruction. |
