Aluminum Radial Locking Wire Grip Clamp for ACSR Conductor SKL-25

Product Categories
SUZHOU SHENHONG IMPORT AND EXPORT CO.,LTD
Contact Now

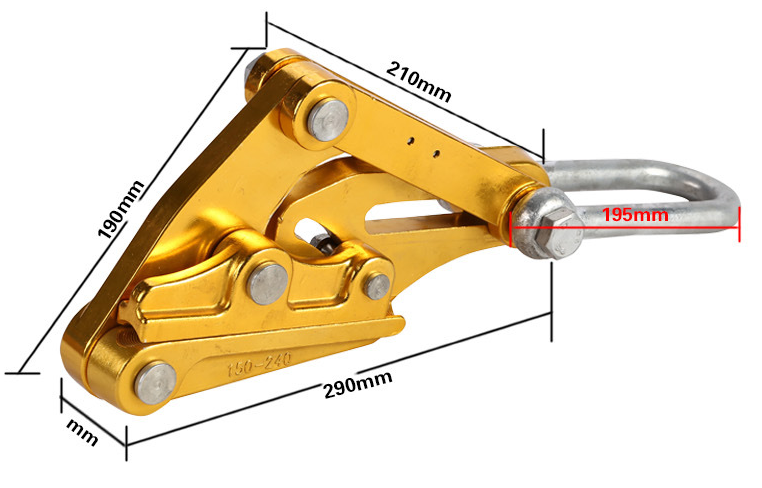

Aluminum Radial Locking Wire Grip Clamp for ACSR Conductor SKL-25

  • 1
  • 2

Brand Name : SHENHONG

Model Number : SKL-25

Certification : ISO

Place of Origin : Jiangsu, China

MOQ : 10pcs

Price : negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000pcs per month

Delivery Time : 7 days after payment

Packaging Details : carton

Rated load(KN) : 25

Weight(kg) : 3

Material : Aluminum Alloy

Max Open : 24mm

Applicable conductor : 150-240mm2

Application : sag adjusting and tensioning

Contact Now

Aluminum Radial Locking Wire Grip Clamp for ACSR Conductor SKL-25​


Quick Information
Model:SKL-25
Rated Load:25KN
Applicable Conductor:150-240mm2
Weight:3kg

Product Description

A device for gripping,pulling and tensioning of sheathed wire ropes, and metal rods,essy operation with safety.Excellent quality.
A device made in alloy for gripping,pulling and tensioning of sheathed wire ropes, cables ,earht or ground cable, cable stretcher and metal rods according to the wire diameter.



Specification
Item No.
Model No.
Rated Load
(KN)
Applicable Conductor
(ACSR-MM2)
Max Open
(MM)
Unit Weight
(KG)
0101
SKL-7
7
25~70
14
1.0
0102
SKL-15
15
95~120
18
1.4
0103
SKL-25
25
150~240
24
3.0
0104
SKL-40
40
300~400
32
4.0
0105
SKL-50
50
500~630
36
6.6

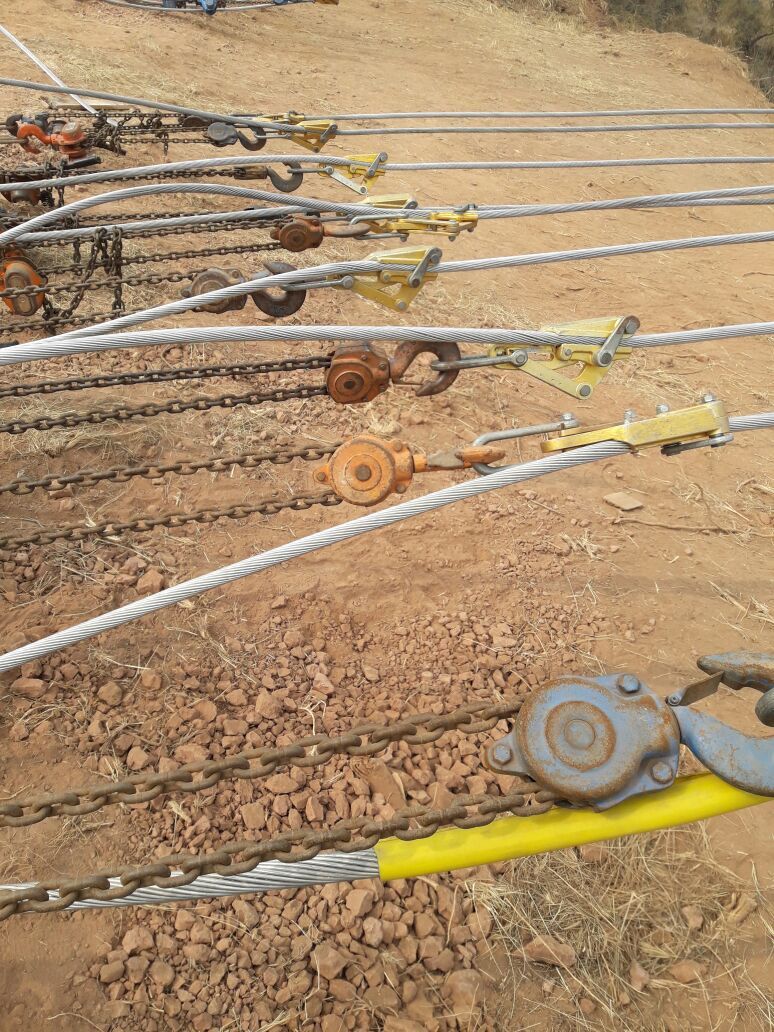

Uses: Apply to sag adjusting and tensioning on overhead line construction.
Features: The clamp is forged of high strength aluminum alloy with small and light unit weight.

Aluminum Radial Locking Wire Grip Clamp for ACSR Conductor SKL-25

Shipment

1. The wire grips will be shipped in plywood case by air or by ship.

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.



Package

1. The wire grips will be packed in plywood case.

2. It also can be packed in wood case or steel frame case.

Payment

1. We accept T/T and L/C.

2. Please send swift copy of T/T if you arrange payment by T/T

3. Please send us the L/C draft to us before issue L/C.

Aluminum Radial Locking Wire Grip Clamp for ACSR Conductor SKL-25
