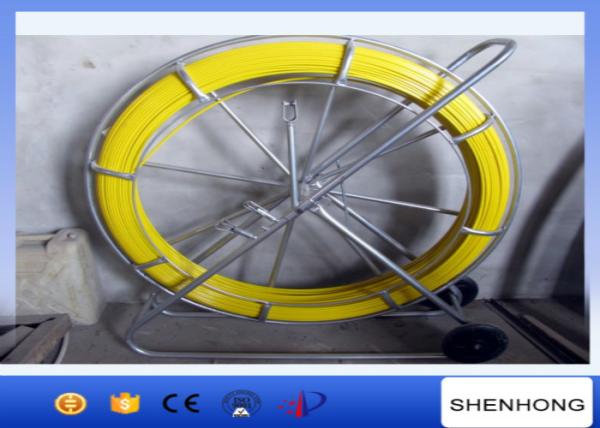

Dia 10MM Yellow Fiberglass Duct Rod 200M Length For Cable Tracing
Product Description
Fiberglass cable duct rod is fitted on steel frame for duct rodder. it is applied in towing lead-rope through a pipe. The rod surface is hard and smooth, so it can get through the narrow pipe or channel easily. The inner core of the rod is made of fiberglass and unsaturated polyester resin. The outside layer is smooth and firm. It is widely used for the cables works or cleaning in cable pipe or channels.
Feature
1. Duct Rodders Compact Construction. Can fit into the boot of any car.
2. Flexible rod: Fish tape Optimal for cable/wire installation in conduits and
underground ducting up to 80m.
3. Rod housed in a study metal frame with an integral brake. HPDE reel rodder Simply rotate the wheel to guide the rod down the duct.
4. Duct snakeProvided pre attached with bullet pulling eye.
5. No running cost. Duct Rodders
Powered Duct Rod Pusher Duct Locating reels Fibre Glass Cable Duct Rodders tube rod Fishtape Puller push pull rod duct rodder Tracing Duct Rods TRACEABLE MIDI DUCT RODDER
Data sheet
| Property | value |
| Model specification | 4.5mm,6mm,8mm,10mm,11mm,12mm,13mm,14mm,15mm,16mm for your choice, and we can also accept OEM order |
| Length | 30,50,60,80,100,120,150,180,200,250,300,350,400,450,500 meters for choice. |
| Material | Fiberglass (inner) and high density polytgtkebe(outer) |
| Density | >1.9gr/cm3 |
| Working temperature | - 40 to + 80 |
| Minimum pulling strength | 4000 N±5% |
| Tensile Modulus | >46.500Mpa |
| Consistency of rod | 137gr/m |
| Flexural Modulus | >46.500Mpa |
| Elongation at Break | 2.5-3% |
| Min. Bending Radius | 388m |
| Tensile Strength | >15N/mm2 |
| Environmental Stress & Crack Resistance | >1000hr |
Best quality Fiberglass duct rodder,China duct rodder,low price Fiberglass duct rodder.Fiberglass duct rodder,duct rodder,Duct rod,Fiberglass push pull.
Details
Suzhou Shenhong Import&Export Company is trading company and manufacturer for Power Transmission Line Stringing Equipments & Construction Tools in China. Suzhou Shenhong is an experienced manufacture and trader of Power & Telecom Line Stringing Equipments and tools, and have engaged in this line for more than 10 years. The products comprise of hydraulic pullers, hydraulic tensioners, Motorised winches, stringing blocks,anti-twisting braided steel wire ropes, tackle blocks, come along clamps, cable pulling grips, swivels, connectors, hoists, gin poles, conductor cutters, pump-presses, insulator lifter, cable rollers etc.
